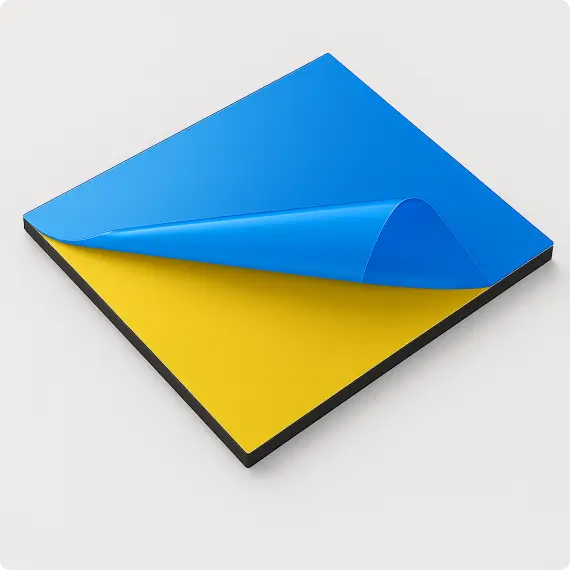

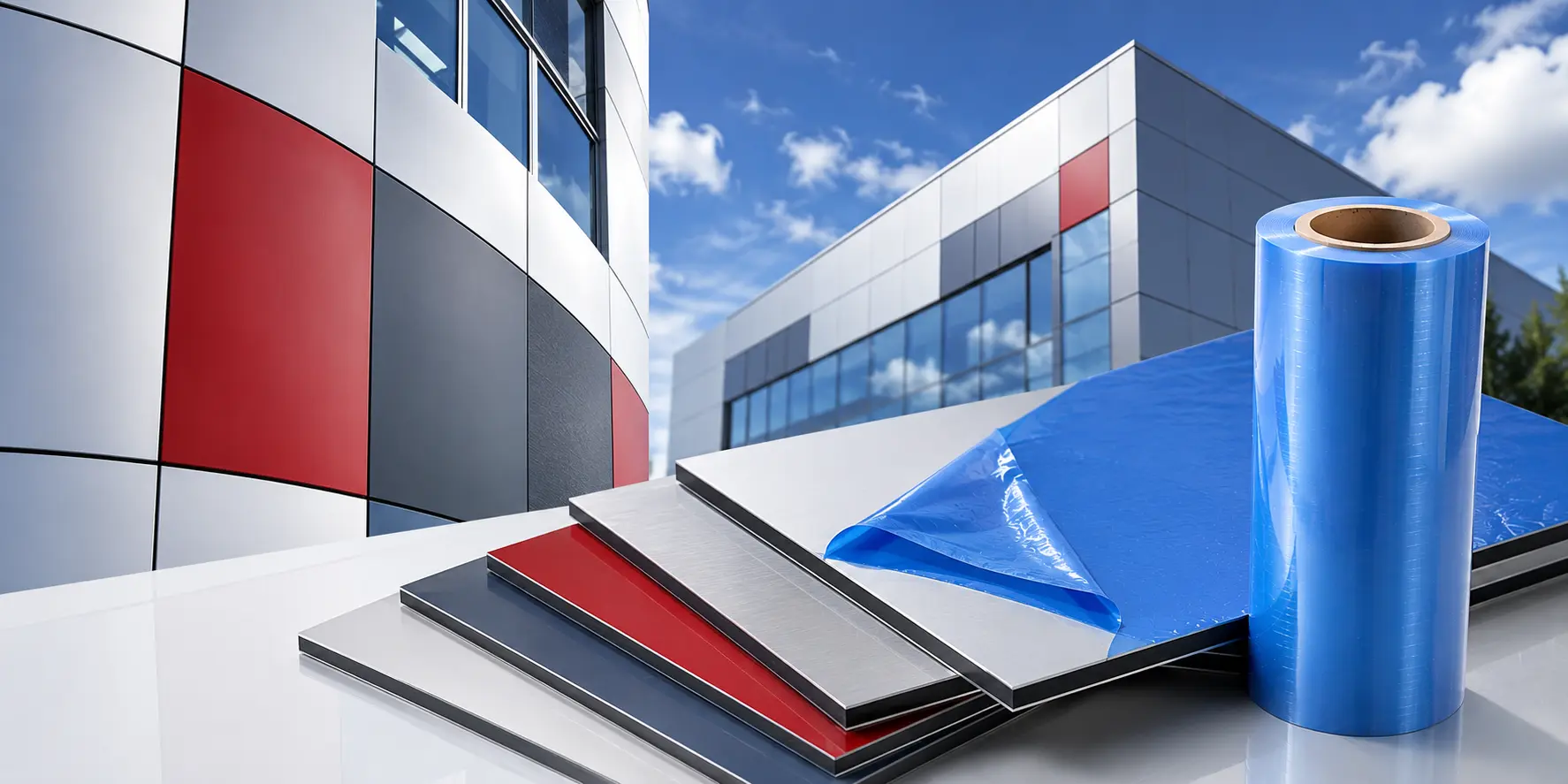

What is ACP Protective Film?
ACP protective film works across four stages of a panel’s lifecycle: factory processing (cutting, routing, bending), finished panel storage, freight transit, and on-site installation. A scratch, paint mist contamination, or adhesive residue at any stage means cleaning or rework costs at the point of delivery — on a façade or signage project, that cost typically exceeds the price difference between film grades.

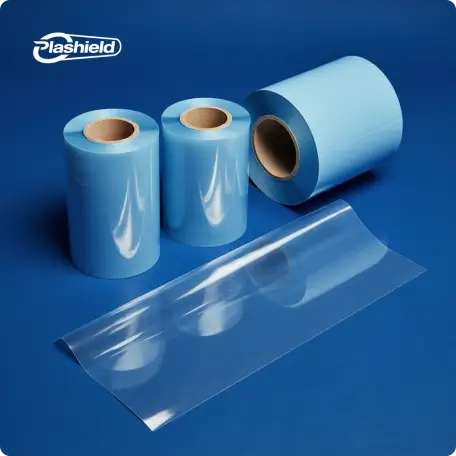

Plashield ACP film uses 100% virgin PE substrate with acrylic pressure-sensitive adhesive formulated in separate tack grades for smooth-gloss, brushed, and embossed ACP surfaces — designed to maintain performance from application to removal without adhesive hardening in high-temperature storage or edge lifting in low-temperature installation environments.
Suitable for:
Exterior & interior façade projects
Signage & advertising panels
Brushed / glossy / embossed aluminum surfaces
PVDF-coated & PE-coated ACP sheets
Supported Panel Types
Suitable for All ACP Types

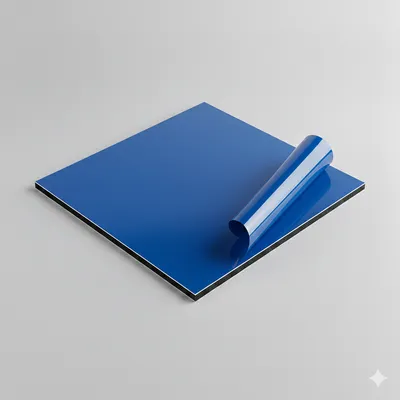

PVDF-coated ACP

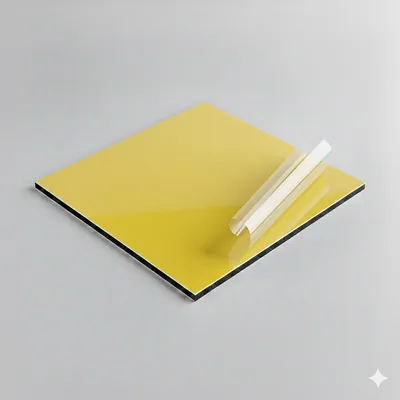

PE-coated ACP

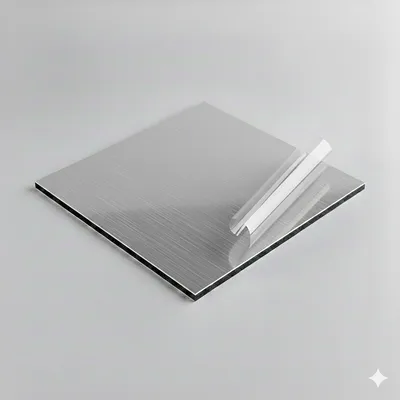

Brushed aluminum panels

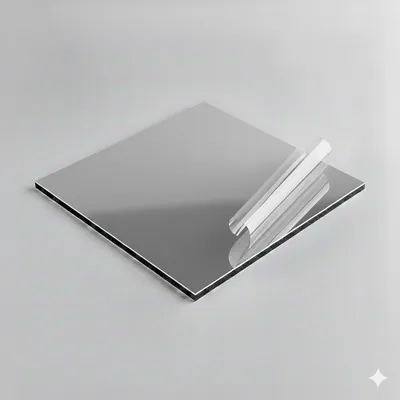

Mirror-finish ACP

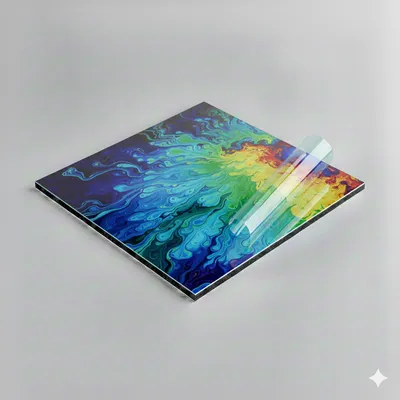

High-gloss decorative sheets

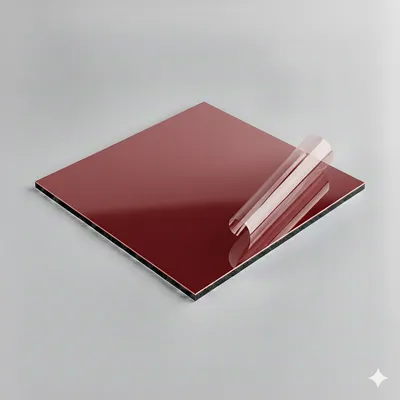

Digital printing ACP
Not sure which film fits your panel?
Core Performance Features
100% virgin PE substrate, elongation at break ≥300% — accommodates bending during ACP fabrication without film fracture or delamination
Low-to-medium tack acrylic PSA, peel force range 80–250 g/25mm (180° test angle, varies by film type) — zero residue on PVDF-coated surfaces confirmed at removal
Resistant to moisture, oil, dust, and common construction solvents including mineral spirits and thinner — suitable for multi-trade construction site environments
Stable adhesion curve compatible with high-speed ACP laminating lines running at ≥30m/min — no wrinkling, no air pockets, no lateral tracking deviation
12-month UV resistance validated through accelerated UV aging test (outdoor exposure equivalent) — suitable for extended outdoor dwell during façade installation cycles
No discoloration, no adhesive residue, no adhesive transfer — panel surface gloss maintained within delivery standard after removal, no additional cleaning required
Why Choose Plashield
Stable adhesion, clean removal, and consistent performance on all ACP surfaces.
Modern production base since 2004, 100% virgin materials, 8+ high-speed lines.
Fast response, custom widths/colors/tack levels, export-ready packaging.
Technical Specifications
| Property | Value |
| Material | Polyethylene (PE) |
| Adhesive | Acrylic PSA |
| Thickness | 0.03–0.10 mm |
| Color | Black/White/Blue/Transparent |
| Tack Level | Low / Medium |
| UV Resistance | 12 months |
| Tensile Strength | ≥10 N/15mm (MD, 50μm reference; ASTM D882 basis) |
| Elongation | ≥300% (MD, ASTM D882 basis) |
| Shelf Life | 12 months (≤45°C / ≤85% RH) |
Available Film Styles
Standard PE protective film — for indoor storage and short-haul transit; 30–60μm thickness, low-to-medium tack; recommended dwell period ≤90 days
High-tack film for brushed aluminum — medium-to-extra-high tack formulation optimized for micro-rough brushed surfaces; prevents edge lifting and mid-process delamination during CNC routing
Low-tack film for high-gloss ACP — formulated for PVDF high-gloss coated surfaces; peel force 80–150 g/25mm, zero residue at removal, no effect on original panel surface gloss
Anti-UV black/white outdoor-grade film — 12-month UV resistance for extended outdoor dwell during façade installation cycles; black variant provides additional UV block to slow adhesive aging under direct sun exposure
Logo-printed film (OEM branding) — client logo, contact details, or brand color printed on film surface; registration accuracy ±0.1mm, batch-to-batch color tolerance ΔE ≤ 1.5; for distributor brand building and factory proprietary branding
Cross-laminated tear-resistant film (optional) — for heavy-gauge ACP bulk handling and outdoor exposed storage; puncture and lateral tear resistance significantly higher than single-layer PE film
Application Scenarios
Shields ACP panels from dust, debris and tools during renovation and interior fit-out works.
Protects panels against paint mist, overspray and staining during on-site painting and coating.
Reduces risk of chemical marks, scratches and tool contact during cleaning and service operations.
Temporary protection for ACP panels in busy areas, preventing scuffs and light impact damage.
Keeps ACP surfaces clean from daily wear, spills and friction in mobile unit applications.
Plashield Company Strength
20+ years in polymer protection, advanced R&D labs, patented adhesive systems, peel-strength testing, UV aging simulation.
8+ integrated production lines, 200 million m² annual capacity, ±0.5% coating precision, ±1mm slitting accuracy.
ISO 9001 certified, multi-step testing (tensile, adhesion, UV, appearance), traceable batch QC, 100% virgin materials.
7×24 support, custom adhesion matching, OEM printing, export packaging, tailored roll sizes (18mm–1600mm).
Trusted by panel factories, construction companies, and distributors in 60+ countries.
How We Serve You
Share your surface, process, and usage conditions
Free samples shipped within 3–5 days.
Adjust tack level, thickness, color, or printing.
Fast lead time: 7–15 days.
Export-ready packaging + documentation.
Customer Cases
An Israeli importer of aluminum profiles and building materials was losing end-customer confidence to a problem they couldn’t resolve at their level: their PE film supplier was shipping batches with inconsistent adhesion and occasional residue on powder-coated aluminum surfaces. The switch to Plashield began as a small verification order in August 2025. By the end of the trial, it had been confirmed as a long-term supply arrangement.
An Irish distributor with over a century in the household goods trade needed PE protective film that could actually move through European retail — shelf-ready, branded, and packaged to meet supermarket planogram requirements. The problem wasn’t sourcing film. It was finding one supplier who could handle the display packaging, consolidate three SKUs into a single order, and cut the 45-day lead time their previous vendor was running. This case documents exactly how that was solved.
We provided a certified flame-retardant protective film solution for a Dutch yacht painting supplier, replacing a previous non-compliant vendor. By ensuring tested, VO-grade performance and consistent batch quality, we addressed critical safety risks and secured a growing, long-term partnership with stable repeat orders.
Testimonials
Packing & Shipping
- Corrugated cartons + transparent wrapping
- Palletized export packing
- Roll labels with lot number and production date
- Suitable for FCL & LCL shipments
- High protection for long-distance transportation
Comparison Table
| Feature | Plashield | Regular Films |
| Virgin PE | 100% virgin PE, no recycled content | Mixed-grade; batch material traceability limited |
| Adhesive Stability | Batch-to-batch peel force deviation ≤10%, in-line tension monitoring | Batch deviation typically ≥20%, subject to raw material variability |
| UV Resistance | 12 months (accelerated aging test validated) | Typically 3–6 months; elevated adhesive hardening risk beyond this window |
| Clean Removal | Zero residue on PVDF surfaces (batch QC verified) | Residue rate varies significantly by batch and storage temperature |
| Customization | Width 18–1600mm / thickness 30–100μm / tack / color / logo print — full parameter customization | Typically standard widths and fixed tack grades only |
| Industrial QC | ISO 9001 full-process certified; 5-point pre-shipment testing; traceable batch records | QC typically finished-product sampling only; no full-process traceable records |
