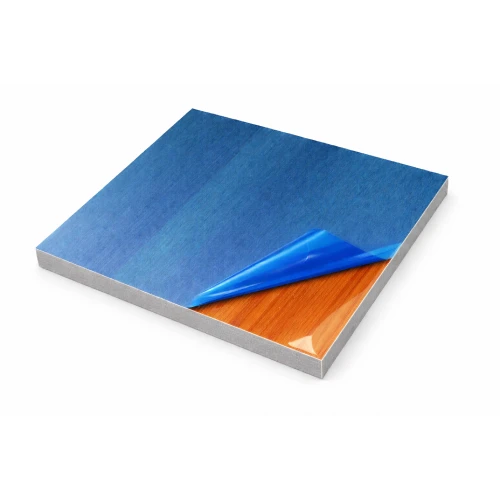

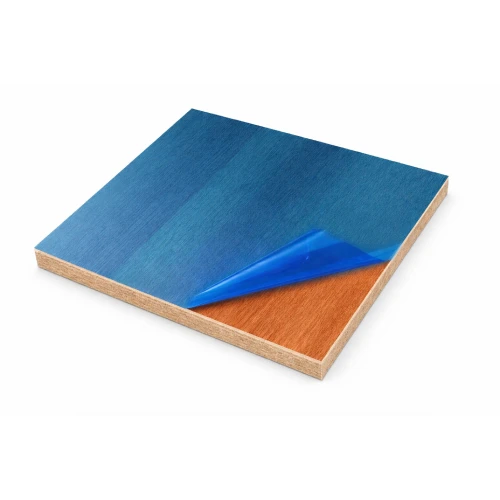

What Is Laminated MDF Panel Protective Film?
Most laminated MDF protective film failures do not happen because no film was applied — they happen because the wrong grade was applied. Standard medium-tack film on high-gloss UV lacquered board: after 30 days, removal reveals clear adhesive impression marks on the panel surface. On a display cabinet or kitchen cabinet door, this type of defect cannot be cleaned away — the panel must be replaced. Low-tack film on melamine-faced board: CNC routing vibration and edge banding conveyor rollers cause edge lifting mid-process, leaving the panel unprotected exactly when tool contact is heaviest. The direct cost of wrong film grade selection — panel write-offs, labor rework, client complaints — consistently exceeds the price difference between correct and incorrect grades.
Plashield MDF laminated film is separately configured for three primary surface types:
- Melamine-faced (solid color / wood-grain) — medium-tack, peel force 150–250 g/25mm; formulation validated for zero residue on melamine surfaces after 30-day dwell.
- High-gloss surfaces (UV lacquer / PVC gloss / piano lacquer) — low-tack, peel force 80–130 g/25mm; requires actual substrate testing for confirmation as different manufacturers’ UV lacquer formulations have significant surface energy variation.
- Matte and textured surfaces (matte PET / brushed PVC / embossed face) — medium-to-medium-high tack to prevent edge lifting from insufficient anchor on textured surfaces.
All three grades can be independently configured per SKU within a single purchase order, widths 600–2200mm, roll lengths 100–3000m, with OEM logo printing (registration accuracy ±0.1mm) and branded carton packaging. ISO 9001 certified; five-point pre-shipment QC per batch; exported to MDF mills, furniture manufacturers, panel distributors, and building materials importers in 60+ countries.
Suitable for:
Melamine-laminated MDF panels
High-gloss laminated MDF
Matte and textured laminated surfaces

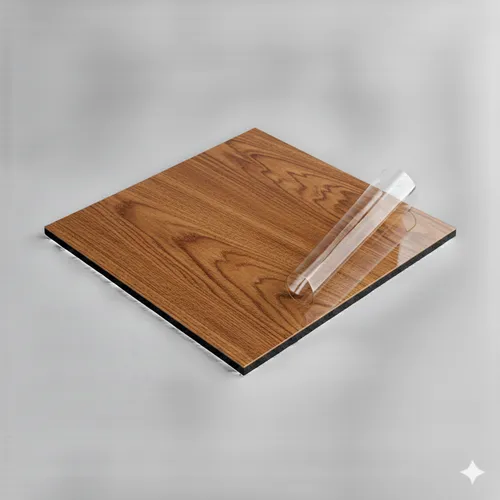

Wood-grain decorative MDF panels
Furniture-grade and interior MDF boards
Suitable Laminated
MDF Panel Surfaces
Compatible with a wide range of decorative finishes.
Melamine-laminated MDF panels
High-gloss laminated MDF
Wood-grain decorative MDF panels
Furniture-grade and interior MDF boards
Not sure which film fits your panel?
KEY Performance Features
100% virgin PE substrate, 30–80μm, coating uniformity ±0.5% (in-line inspection) — thickness consistency directly determines tension stability on MDF automatic laminating lines; batch deviation is the leading cause of line jams
Acrylic PSA configured by laminate type: low-tack 80–130 g/25mm (high-gloss surfaces) / medium-tack 150–250 g/25mm (melamine surfaces) / medium-high tack 200–350 g/25mm (matte textured surfaces), tested by 180° ASTM D3330
Batch-to-batch peel force deviation ≤10% — stable tension in continuous MDF laminating operations; no tracking deviation or delamination at edge banding conveyor rollers from batch adhesion variability
Zero residue on melamine and high-gloss UV lacquered surfaces after 30-day dwell, validated by 7-day accelerated aging (50°C, ASTM D3330); stable edge adhesion in low-temperature application environments (≥5°C)
Elongation at break ≥300% (ISO 527), compatible with CNC routing, V-groove folding, and edge banding bend operations — insufficient elongation causes film rupture at fold lines, exposing surfaces at fold and edge banding zones
Resistant to moisture, woodworking cutting oil, sanding dust, and light mechanical abrasion — for multi-operation environments in furniture factories and interior construction sites
Transparent: visual surface inspection through film — scratches, color defects, and foreign particles detectable without peeling. Blue and white: immediate on-site identification of covered areas for coverage completeness verification
Why Choose Plashield
Plashield MDF laminated film has been validated on four primary laminate surface types: melamine-faced MDF, high-gloss UV lacquered panel, matte PET-wrapped panel, and wood-grain decorative MDF. Medium-tack formulation maintains peel force at 150–250 g/25mm on melamine-faced board after 30-day dwell with zero residue (7-day accelerated aging at 50°C validated). Low-tack formulation on high-gloss surfaces shows no visible adhesive impression marks on removal by visual inspection. Batch-to-batch peel force deviation ≤10% ensures consistency in continuous MDF laminating line operations. Figures from production batch QC records — not sample-only testing.
Factory in Xinxiang, Henan Province, in continuous operation since 2004. 8+ coating and slitting lines, 200 million m² annual capacity, widths up to 2200mm (matching MDF standard panel dimensions). Coating thickness precision ±0.5% (in-line inspection); slitting width accuracy ±1mm. ISO 9001 certified across the full production process. Each batch ships with five-point QC records (peel force / coating uniformity / appearance / dimensions / elongation at break sampling). SGS third-party test reports available on request for European and Middle Eastern importer qualification audits.
Customizable parameters: film width 600–2200mm (precisely slit per client’s board standard dimensions), thickness 30–80μm, tack level (configured from actual MDF laminate sample test results), color (transparent / blue / white / brand-specified), OEM logo printing (including directional arrows and stacking marks), branded carton (full-color print, produced concurrently with film — total lead time not extended by packaging). Samples dispatched within 3–5 business days. Standard mass production lead time 7–15 days. Multi-SKU orders (e.g., melamine grade + high-gloss grade + matte grade) consolidated into a single purchase order and shipped together.
Technical Specifications
| Property | Unit | Typical Value |
| Base Material | – | Polyethylene (PE) |
| Adhesive Type | – | Acrylic pressure-sensitive adhesive |
| Total Thickness | mm | 0.03 – 0.08 |
| Adhesion Level | – | Low / Medium |
| Tensile Strength | – | Industrial standard |
| Elongation at Break | % | Application dependent |
| Color Options | – | Transparent / Blue / White |
| Surface Finish | – | Smooth |
| Width | mm | 600 – 2200 (custom slit) |
| Roll Length | m | 100 – 3000 |
| UV Resistance | months | Indoor / short-term outdoor |
| Shelf Life | months | 12 (recommended storage conditions) |
Film Styles & Options
Standard Low-Tack Film
Low-tack formulation, peel force 80–130 g/25mm (180°, ASTM D3330), 30–50μm, for high-gloss UV lacquered, PVC gloss-wrapped, and piano finish MDF. The most common quality complaint on high-gloss panels at removal is adhesive impression marks — particularly after dwell exceeding 14 days, summer warehouse heat, or container transit high temperatures. Low-tack formulation validated by accelerated aging test (50°C / 7 days) with no visible impression on removal. For cabinet door, wardrobe door, and premium display cabinet factory processing and transit protection.
Medium-Tack Film
Medium-tack formulation, peel force 150–250 g/25mm, 50–70μm, for melamine-faced MDF (solid color, wood-grain, stone-pattern laminate) — the highest-volume MDF surface category and the primary film consumed on panel factory laminating lines. Melamine surface micro-roughness provides insufficient anchor for low-tack film; edge lifting frequency under CNC cutting vibration and high-speed edge banding conveyor friction is significantly higher with low-tack than medium-tack on melamine. Zero residue on melamine surfaces after 30-day dwell; compatible with manual application and MDF factory continuous laminating lines (machine-grade long rolls available).
Printed OEM Film
Client logo, contact details, product series name, stacking direction arrows, or removal instruction text printed on film surface; registration accuracy ±0.1mm, batch-to-batch color tolerance ΔE ≤ 1.5. Three practical applications in MDF and furniture panel industries:
① Panel factory-to-distributor shipments — branded film enables distributors to identify the supplier immediately at warehouse receiving;
② Furniture factory-to-end-client shipments — branded film creates a brand touchpoint when clients unpack assembled components;
③ On-site installation — printed film keeps the installer’s brand visible to head contractors and owners throughout the entire installation period. Branded carton production runs concurrently with film production — total lead time is not extended by packaging.
Wide-Width Film
Wide-width configuration up to 2200mm, matching MDF standard large-format boards (1220×2440mm / 1220×2800mm / 1830×2440mm and other common dimensions) for single-pass full-width lamination with no splicing — eliminating the unprotected gap at splice zones. Extra-wide rolls are produced with tapered tension winding for flat end faces compatible with MDF factory continuous dual-roller laminating line reel changes (uneven end faces are the leading cause of automatic laminator jams and tension fluctuations). Width precisely slit to the client’s maximum laminating web width, accuracy ±1mm. Machine-grade long rolls (≥500m) reduce reel-change frequency and increase continuous run time.
Application Scenarios
Protects decorative surfaces during cutting, CNC machining, drilling and routing.
Prevents scratches and contamination during edge banding and furniture assembly.
Shields panels from abrasion, dust and moisture during stacking and logistics.
Protects cabinet panels, wall panels and furniture components during installation.
Keeps laminated surfaces clean during construction and finishing work.
Plashield Company Strength
20+ years in polymer protection, advanced R&D labs, patented adhesive systems, peel-strength testing, UV aging simulation.
8+ integrated production lines, 200 million m² annual capacity, ±0.5% coating precision, ±1mm slitting accuracy.
ISO 9001 certified, multi-step testing (tensile, adhesion, UV, appearance), traceable batch QC, 100% virgin materials.
7×24 support, custom adhesion matching, OEM printing, export packaging, tailored roll sizes (18mm–1600mm).
Trusted by panel factories, construction companies, and distributors in 60+ countries.
How We Serve You
Share your surface, process, and usage conditions
Free samples shipped within 3–5 days.
Adjust tack level, thickness, color, or printing.
Fast lead time: 7–15 days.
Export-ready packaging + documentation.
Customer Cases
An Irish distributor with over a century in the household goods trade needed PE protective film that could actually move through European retail — shelf-ready, branded, and packaged to meet supermarket planogram requirements. The problem wasn’t sourcing film. It was finding one supplier who could handle the display packaging, consolidate three SKUs into a single order, and cut the 45-day lead time their previous vendor was running. This case documents exactly how that was solved.
A Dutch yacht painting materials trading company’s previous flame-retardant film supplier could not provide effective test documentation — the film was labeled “flame retardant” but failed the client’s on-site verification testing for project use, creating a genuine construction safety exposure. We developed V0-grade flame-retardant PE film samples within 10 business days, submitted third-party combustion test data, and entered mass production after the client’s independent testing confirmed compliance. Since first cooperation in November 2024, repeat orders have grown consistently, with annual purchase volume exceeding USD 20,000.
Marble countertop wholesalers in Brazil’s distribution chain face a structural cost pressure: products must be branded to move through downstream resellers and kitchen cabinet manufacturers, but most PE film suppliers cannot simultaneously handle custom film color, logo-printed cartons, and export packaging. This client began working with Plashield in August 2023, with a core requirement to consolidate film sourcing, brand packaging, and sea-freight protection into a single supplier arrangement — at an annual purchase volume of approximately USD 40,000.
Testimonials
Packing & Shipping
- Corrugated cartons + transparent wrapping
- Palletized export packing
- Roll labels with lot number and production date
- Suitable for FCL & LCL shipments
- High protection for long-distance transportation
Comparison Table
| Feature | Plashield | Regular Films |
| Virgin PE | √ | × Mixed |
| Adhesive Stability | High | Medium |
| UV Resistance | 12 months | 3–6 months |
| Clean Removal | Excellent | Inconsistent |
| Customization | Full | Limited |
| Industrial QC | ISO-certified | Basic |
